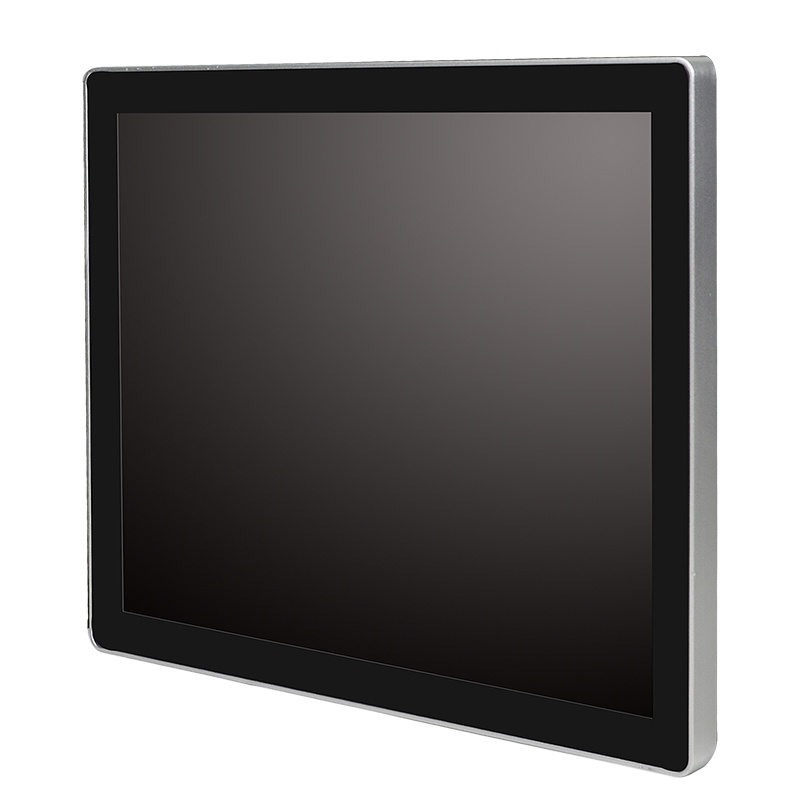

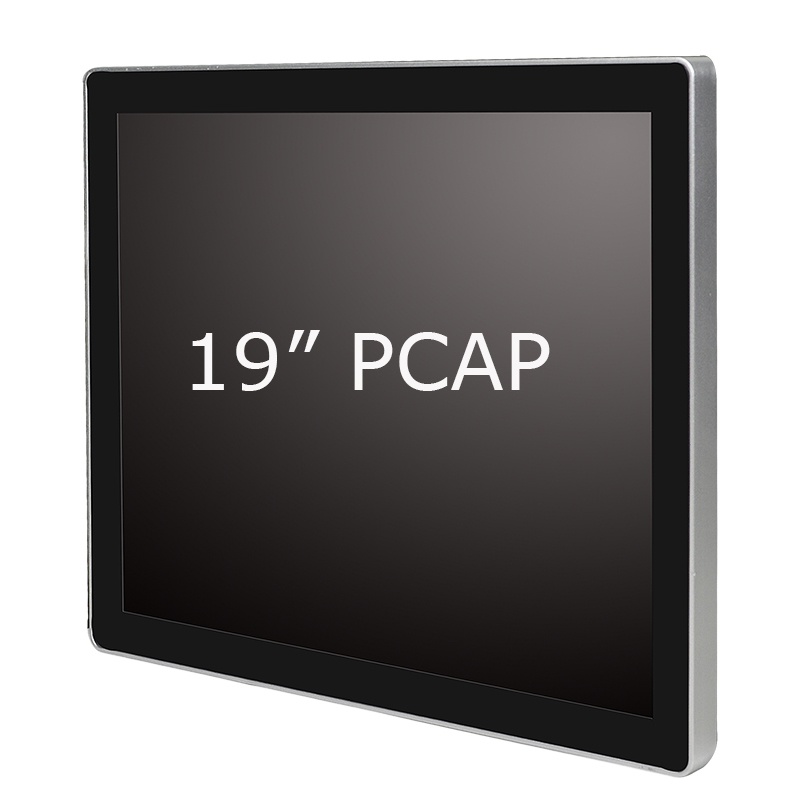

H190-RT 1280*1024 19 in capacitive touch monitor with VGA,AV,HDMI ports

H190-RT 1280*1024 19 in capacitive touch monitor with VGA,AV,HDMI ports

1280*1024 industrial level 19 inch capacitive touch monitor
  • Thumbnail 2
  • Thumbnail 2
  • Thumbnail 2
  • Thumbnail 2
  • Thumbnail 2
  • Introduction
  • Specification
  • Accessories

19 inch industrial capacitive touch monitor

Industrial EETI touch control

1280*1024

True flat screen

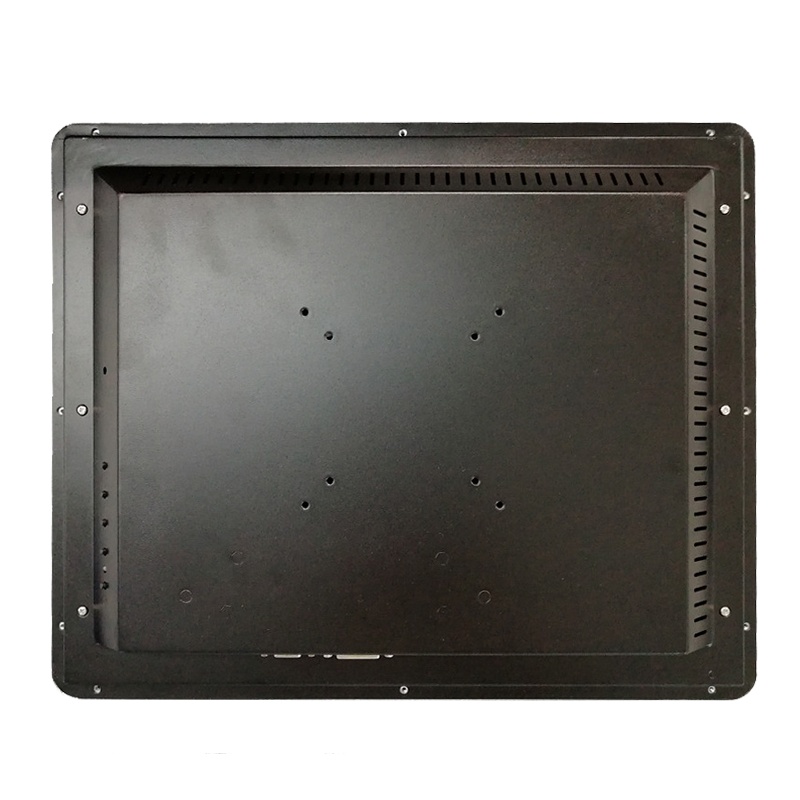

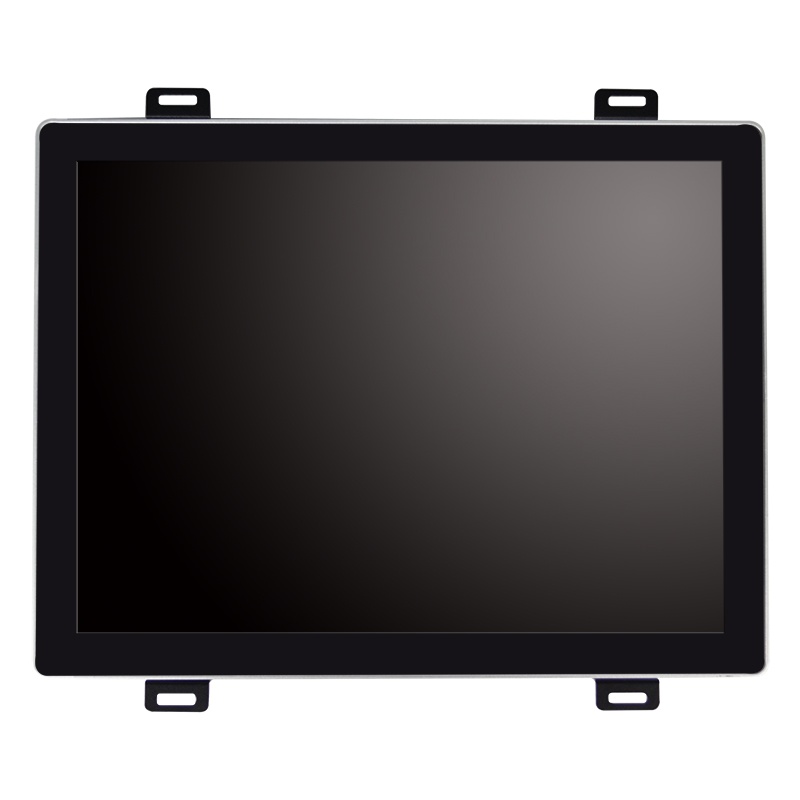

VESA mount, open frame or with folded stand

VGA+DVI+HDMI+USB for Touch





  • Model: H190-RT
  • Display: 19” TFT High Definition capacitive touch monitor (5:4)
  • Resolution: 1280*1024 pixels
  • Luminance: 250 nits
  • Contrast ratio: 1000:1
  • Input voltages: 110 to 240V AC
  • Output voltage: 12V DC
  • Response time: 6ms
  • Viewing angle: 170°/160°
  • Touch control: industrial EETI or consumer ILITEK
  • Product size: 42.6*35.1*5.0 cm
    • Shell material: Aluminium bezel with metal case

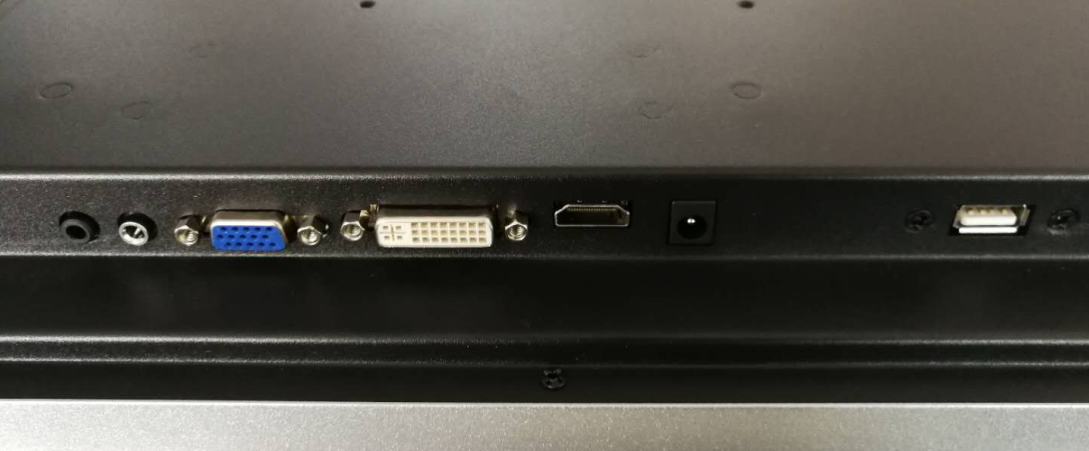

        • Interface: VGA+DVI+HDMI+USB for Touch
  • Product size: 44.6*37.0*4.3 cm
  • Net weight: 4.65 KGS
  • Carton box size: 50*39*45 cm
  • Carton box gross weight: 20.73 KGS
  • Touch panel: G+G
  • Surface hardness: 7H
  • Transparency: >90%±5%
  • Operating temperature: 0 to 50°C/20%-80%(non-condensing)
  • Humidity temperature: 0-85% at 40°C (non-condensing)
  • Storage temperature: -20 to 60°C/5-95%(non-condensing)
  • Storage humidity: 5%~95%
  • Connection Type: USB
  • Response time: <10 ms
  • Operation voltage: 3.3 V-3.6 V DC
  • Max supported points : 10
  • System supported: Windows XP/7/8/10, Android, Linux















Accessories:


VESA wall mount, warranty card,VGA cable, USB cable and power adapter.
