H185-RT 1366*768 18.5 inch capacitive touch wide screen monitor

H185-RT 1366*768 18.5 inch capacitive touch wide screen monitor

1366*768 18.5 inch capacitive touch monitor with G+G touch panel
  • Thumbnail 2
  • Thumbnail 2
  • Thumbnail 2
  • Thumbnail 2
  • Thumbnail 2
  • Introduction
  • Specification
  • Accessories

10 touch points

True flat screen

18.5 inch 1366*768

G+G structure

Industrial EETI touch

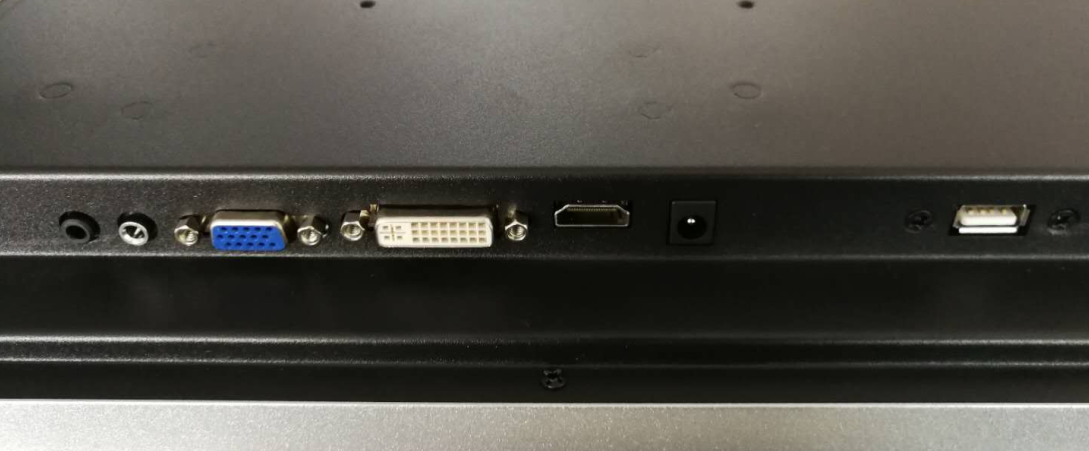

VGA+DVI+HDMI+USB for touch


  • Model: H185-RT
  • Display: 18.5” TFT High Definition capacitive touch monitor (5:4)
  • Resolution: 1366*768 pixels
  • Brightness: 250 cd/m²
  • Contrast ratio: 1000:1
  • Input voltages: 110 to 240 V AC
  • Output voltage: 12 V DC
  • Response time: 6 ms
  • Viewing angle: 170°/160°
  • Shell material: Aluminium bezel with metal case

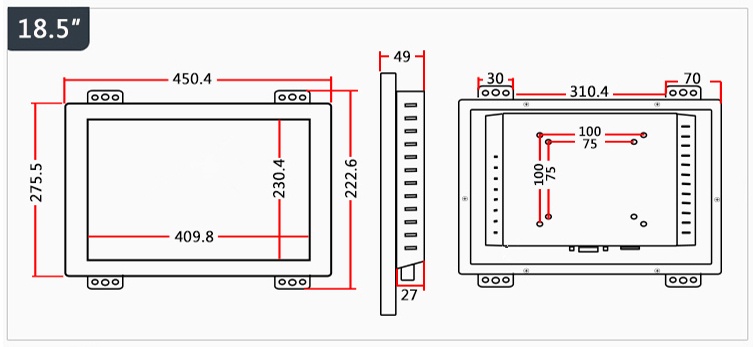

  • Product size: 46.0*28.0*4.8 cm
  • Net weight: 4 KGS
  • Carton box size: 53*39*40 cm
  • Carton box gross weight: 18.53 KGS
  • Touch panel: G+G (True-flat)
  • Surface hardness: 7H
  • Transparency: >90%±5%
  • Operating temperature: 0 to 50°C/20%-80%(non-condensing)
  • Humidity temperature: 0-85% at 40°C (non-condensing)
  • Storage temperature: -20 to 60°C/5-95%(non-condensing)
  • Storage humidity: 5%~95%
  • Connection Type: USB
  • Response time: <10 ms
  • Operation voltage: 3.3 V-3.6 V DC
  • Max supported points : 10
  • System supported: Windows XP/7/8/10, Android, Linux and DOS.









Accessories:

VESA wall mount, warranty card,VGA cable, HDMI cable, manual book, USB line and power adapter.
