H192J 19-inch 1440*900 widescreen metal case non-touch monitor

H192J 19-inch 1440*900 widescreen metal case non-touch monitor

19 inch widescreen rugged metal case monitor used for CCTV security surveillance.
  • Thumbnail 2
  • Thumbnail 2
  • Thumbnail 2
  • Thumbnail 2
  • Introduction
  • Specification
  • Accessories





· 3D digital comb filter with 3D digital noise reduction

· Progressive scan ;

· Solid metal frame, Anti-static, Anti-magnetic field and Anti strong interference.

· VESA standard wall mount(Metal folded holder optional)

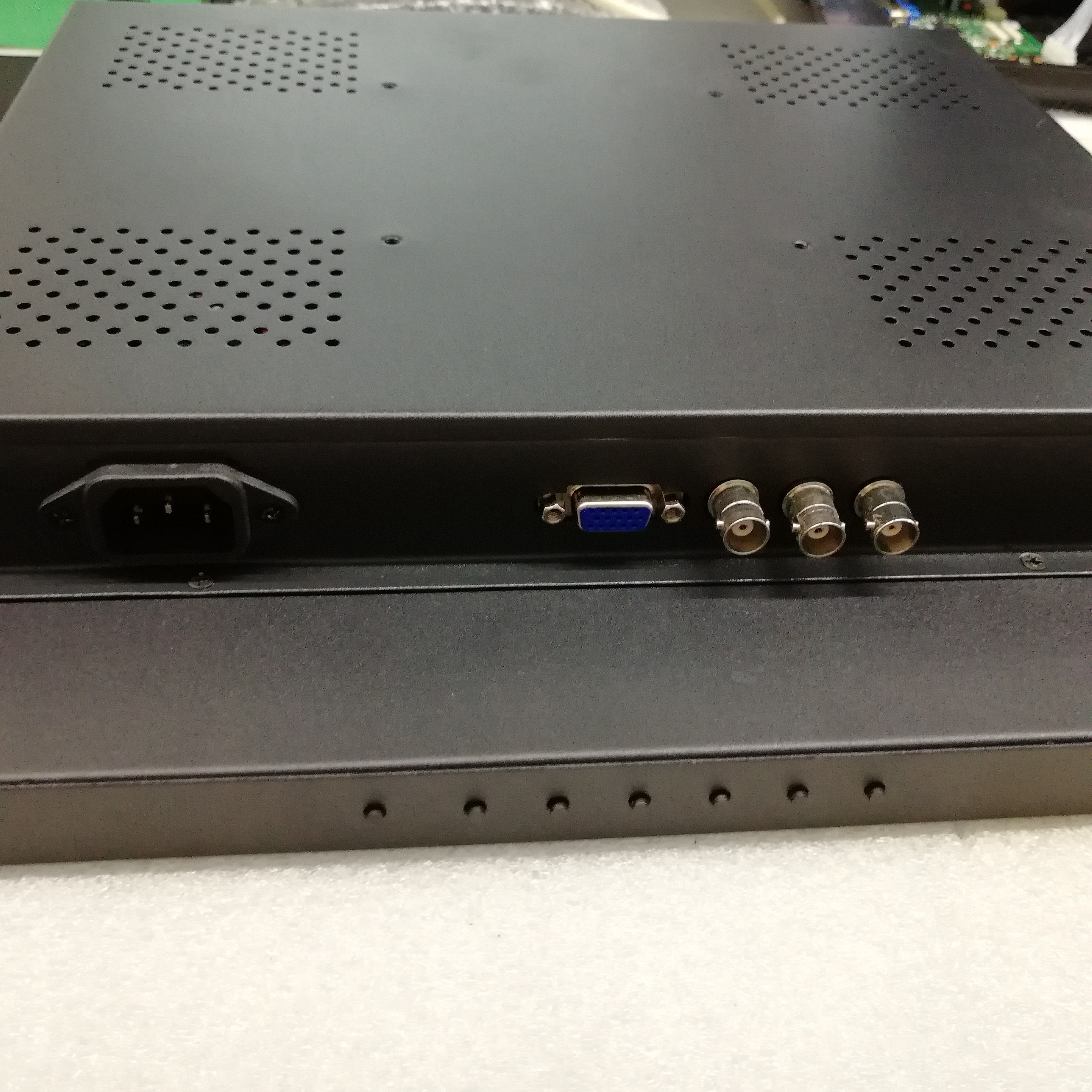

· VGA,BNC1,BNC2, input;

· BNC output

 Builit-in power supply

· Certification: FCC, CE, RoHS Directive-compliant, CCC

· Mainly used in security monitoring, industry video monitoring or similar fields.


Display Parameters

Resolution 1440*900 Aspect Ratio 16:10 Contrast Ratio 1000:1
Display Area 3410.4*256.5 mm Brightness: 250 nits Widescreen YES
Viewing Angle 170°/160° Screen Color 16.2 M Panel Type LCD
Response Time 5 ms Backlight CCFL

Specification

Installation Wall Mount (Stand for Option)  Frame color Black Power input/output Input:110V~240V Output:12V
Operating temperature 0~50℃ Storage temperature -20~60℃ Humidity temperature 10~95%@40℃ ( non-condensing )
Product Dimensions 460*310*60 mm Product material Rugged metal case Function optional horizontally and vertically flipped
Accessories: Manual, Warranty card, Remote controller, Power supply, BNC cable, VGA cable
