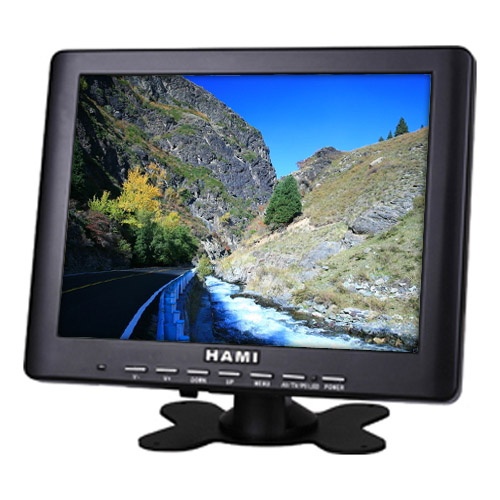

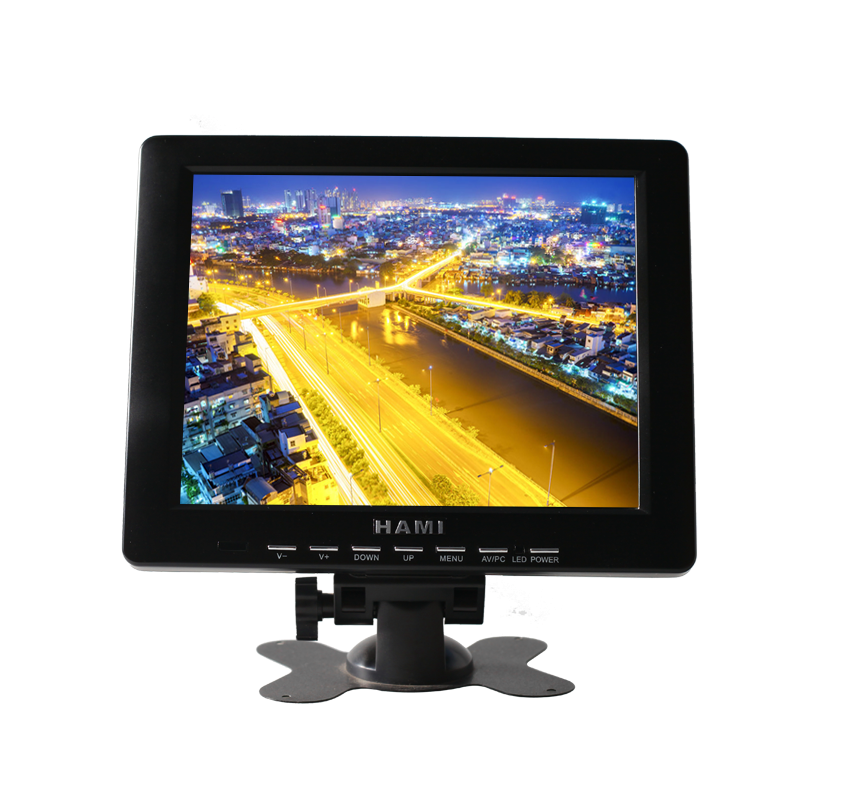

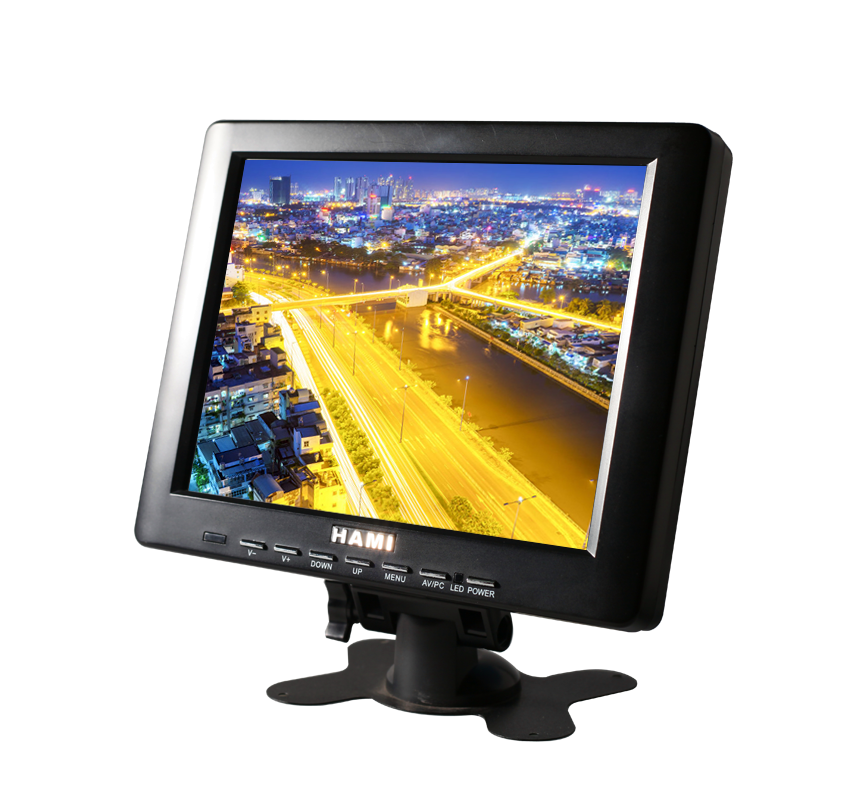

H8003 8 inch 640*480 4:3 plastic LCD screen display

H8003 8 inch 640*480 4:3 plastic LCD screen display

8" 640*480 TFT plastic LCD Display,4:3 display ratio with standard VGA and AV ports, optional BNC and HDMI ports
  • Thumbnail 2
  • Thumbnail 2
  • Thumbnail 2
  • Thumbnail 2
  • Introduction
  • Specification
  • Accessories

8" plastic TFT LCD Display;

Resolution: 640*480 pixel;

Brightness: 250 nits

Contrast ratio: 300:1;

Viewing angles: 140°/120°

Screen brand: SHARP OR SANYO


Interface: VGA/AV input RCA output

Optional: BNC/HDMI/TV

Language: Chinese, English, Italian, Spanish, German, French, Japanese, Korean

Certification: FCC, CE, ROHS, CCC

Added function optional: Vertical Flipped function




Display Parameters

Aspect Ratio 4:3 Contrast Ratio 250:1 Response Time 50ms
Display Area 163.2×122.4mm Brightness 250 nits Backlight CCFL
Resolution 800×600 Viewing Angle 140°/120°


Screen Color 262K Panel Type LCD

Specification

Installation Custom Stand  Frame color Black Product Dimensions 206*161*37mm
Power input/output 110V to 240V input, 12V output Operating temperature 0~50℃ Humidity temperature 0~85%@40℃ ( non-condensing )
Storage temperature -20~60℃ Box Packing Dimensions 305*215*75mm










Accessories: Specification, Warranty card, stand, AV cable, Remote controller, Power adapter
