H8009-RT 1024*768p High Definition 8 inch capacitive touch monitor

H8009-RT 1024*768p High Definition 8 inch capacitive touch monitor

8 inch High Definition 1024*768 capacitive touch monitor with G+G touch panel
  • Thumbnail 2
  • Thumbnail 2
  • Thumbnail 2
  • Thumbnail 2
  • Thumbnail 2
  • Thumbnail 2
  • Introduction
  • Specification
  • Accessories

8 inch capacitive touch monitor

1024*768 pixels

Industrial EETI touch

True-flat screen

Aluminum bezel with metal case




  • Model: H8009-RT
  • Display: 8” TFT High Definition capacitive touch monitor (4:3)
  • Resolution: 1024*768 pixels
  • Brightness: 250 cd/m²
  • Contrast ratio: 500:1
  • Power supply: 12V DC
  • Response time: 6ms
  • Viewing angle: 140°/120°
  • Shell material: Aluminium bezel with metal case

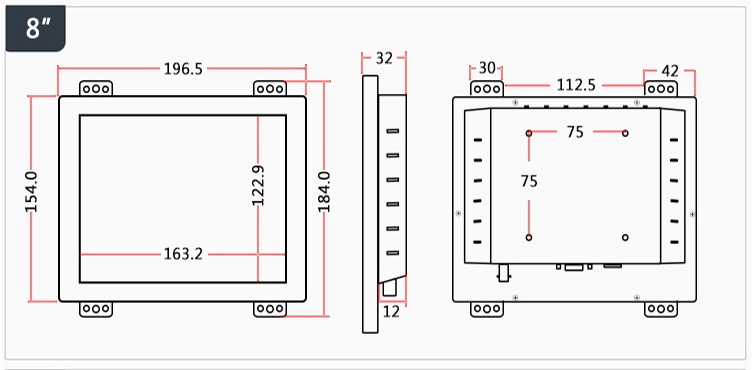

  • Product size: 20.6*16.6*3.9 cm
  • Net weight: 1.07 KGS
  • Carton box size: 49*32*34 cm
  • Carton box quantity: 10 pcs/ctn
  • Gross weight: 14.3 kgs
  • Touch panel: G+G
  • Surface hardness: 7 H
  • Transparency: >90%±5%
  • Operating temperature: 0 to 50°C/20%-80%(non-condensing)
  • Humidity temperature: 0-85% at 40°C (non-condensing)
  • Storage temperature: -20 to 60°C/5-95%(non-condensing)
  • Storage humidity: 5%~95%
  • Connection Type: USB
  • Response time: <10 ms
  • Operation voltage: 3.3 V-3.6 V DC
  • Max supported points : 10
  • System supported: Windows XP/7/8 Android, Linux

















Accessories:


VESA wall mount, warranty card,VGA cable, manual book and power adapter.
