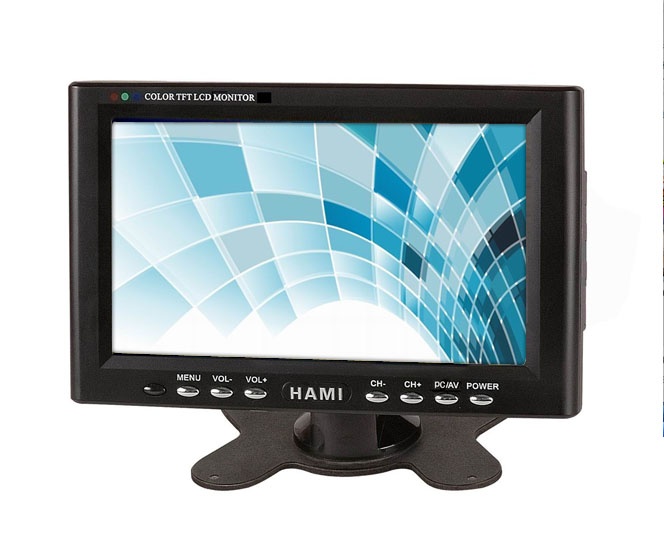

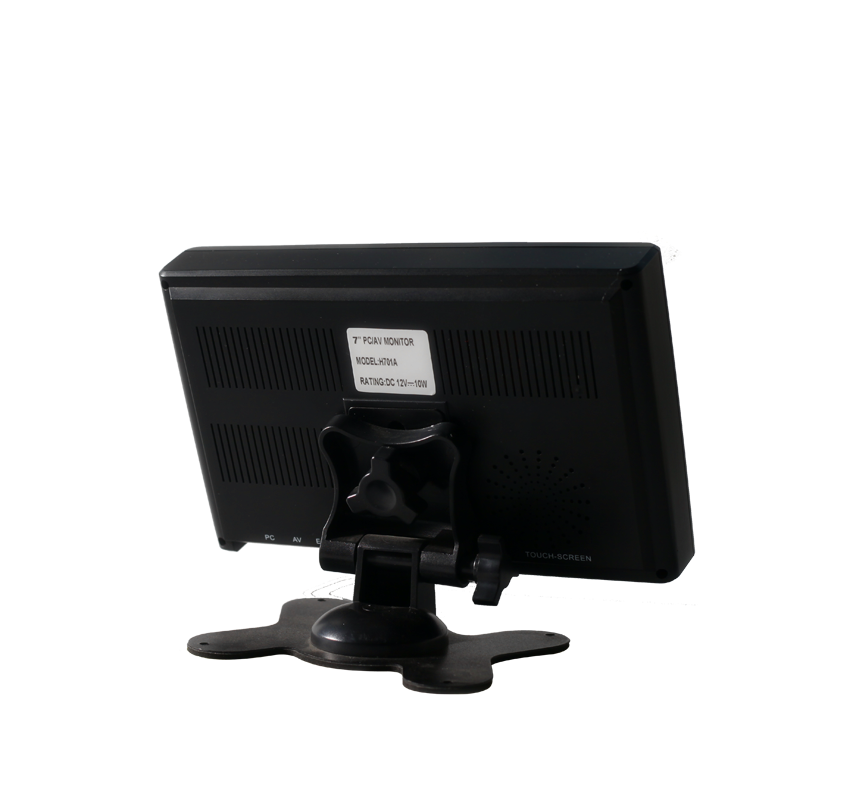

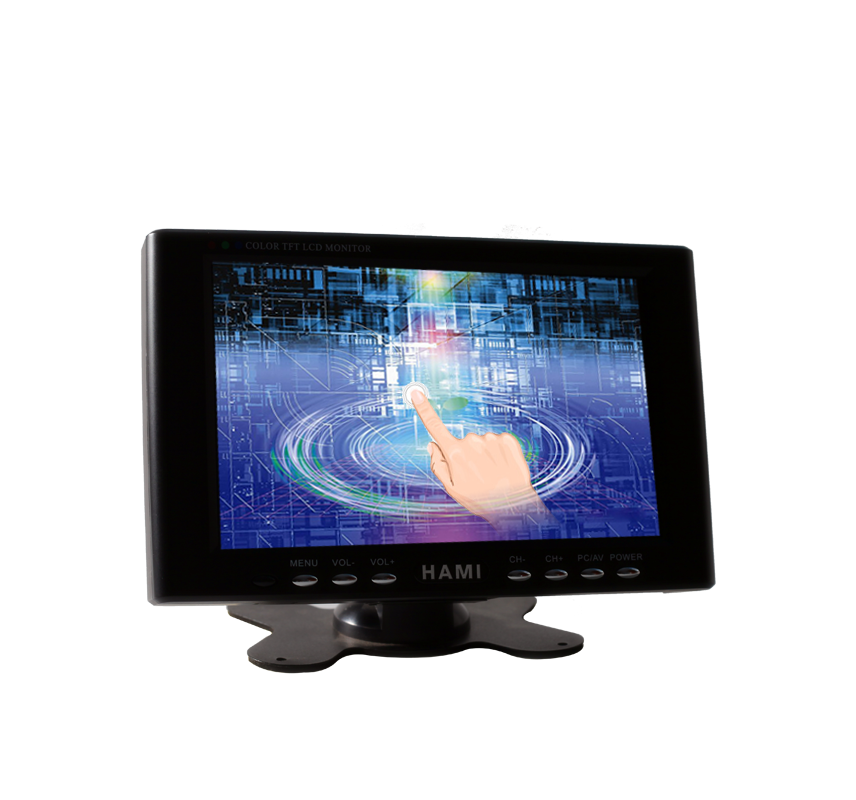

7 inch plastic 4 wire resistive touch screen
Resolution: 800×480 pixels
Aspect ratio: 16:9

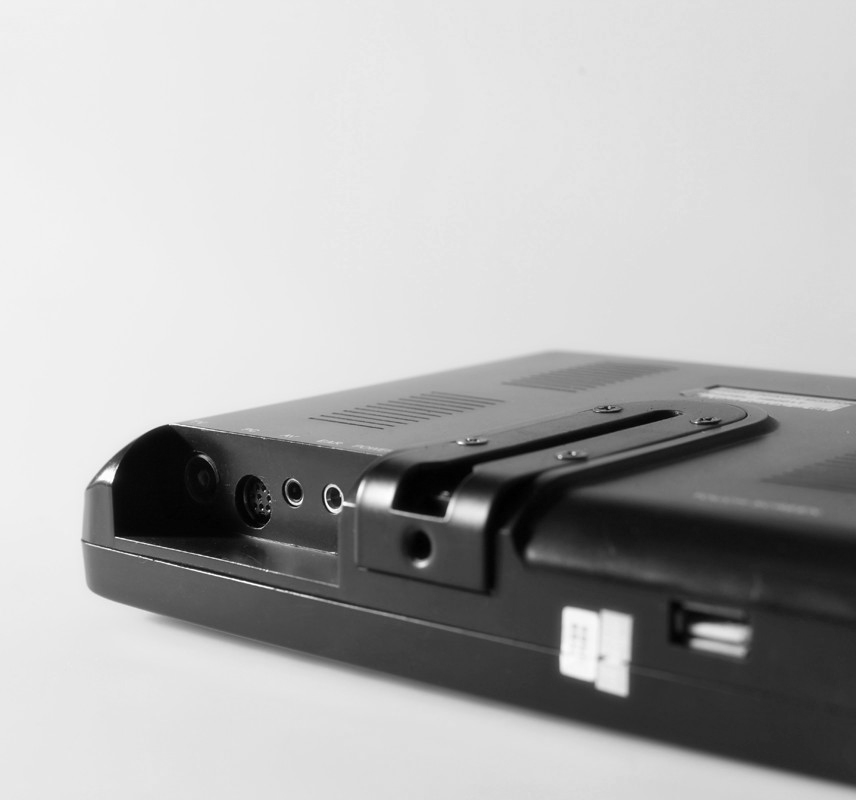

Interface: VGA/AV interface, USB port for driver
Optional: BNC input
Language: Chinese, English, Italian, Spanish, German, French, Japanese, Korean
Certification: FCC, CE, ROHS,CCC
Mainly used in information checking terminal, order cashier terminal, video remote music terminal, electronic storage operation terminal, financial trade terminal, exhibition display, on-board or similar fields.
Display Parameters |
|||||
| Aspect Ratio |
16:9 |
Contrast Ratio | 500:1 | Panel Type | LCD |
| Display Area | 154.08×85.92 mm | Brightness | 250 nits | Backlight | CCFL |
| Resolution | 800×480 | Viewing Angle | 140°/120° |
|
|
| Screen Color |
262 K |
Response Time | 25 ms | ||
Specification |
|||||
| Installation | Stand | Frame color | Black | Product Dimensions | 194×121×35 mm |
| Power input/output | 110V to 240V AC input, 12V DC output | Operating temperature | 0~50℃ | Humidity temperature | 0-85% at 40°C (non-condensing) |
| Storage temperature | -20~60℃ | Box Packing Dimensions | 300×181×85 mm | ||
| Touch Type | 4-wire resistive | Touch Interface | USB/RS232 |
|
|
Packing
