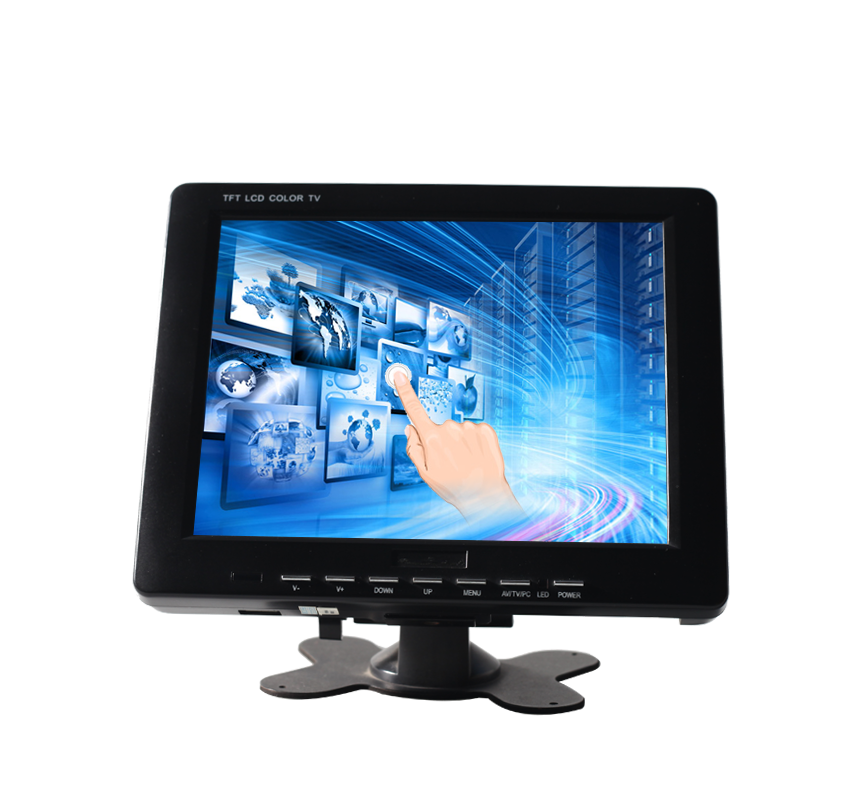

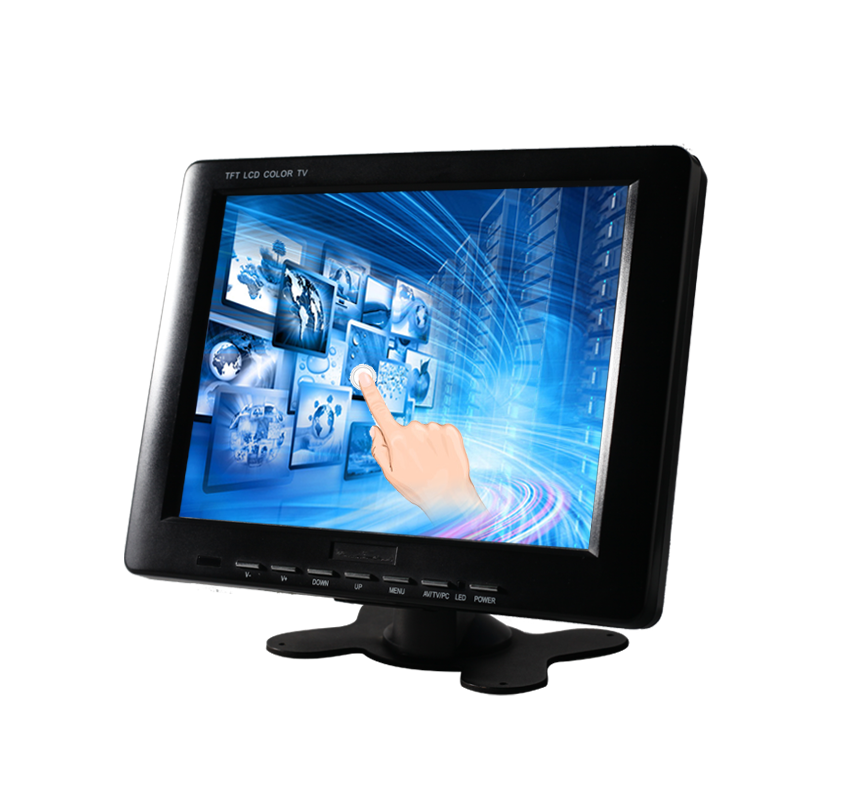

H8001-T 8 inch resistive touch screen LCD monitor display for terminals

H8001-T 8 inch resistive touch screen LCD monitor display for terminals

8" plastic resistive touch screen TFT LCD Display, compact and convenient,6 languages for different terminals.
  • Thumbnail 2
  • Thumbnail 2
  • Thumbnail 2
  • Thumbnail 2
  • Introduction
  • Specification
  • Accessories

8" plastic resistive touch screen TFT LCD Display, compact and convenient,6 languages for different terminals.

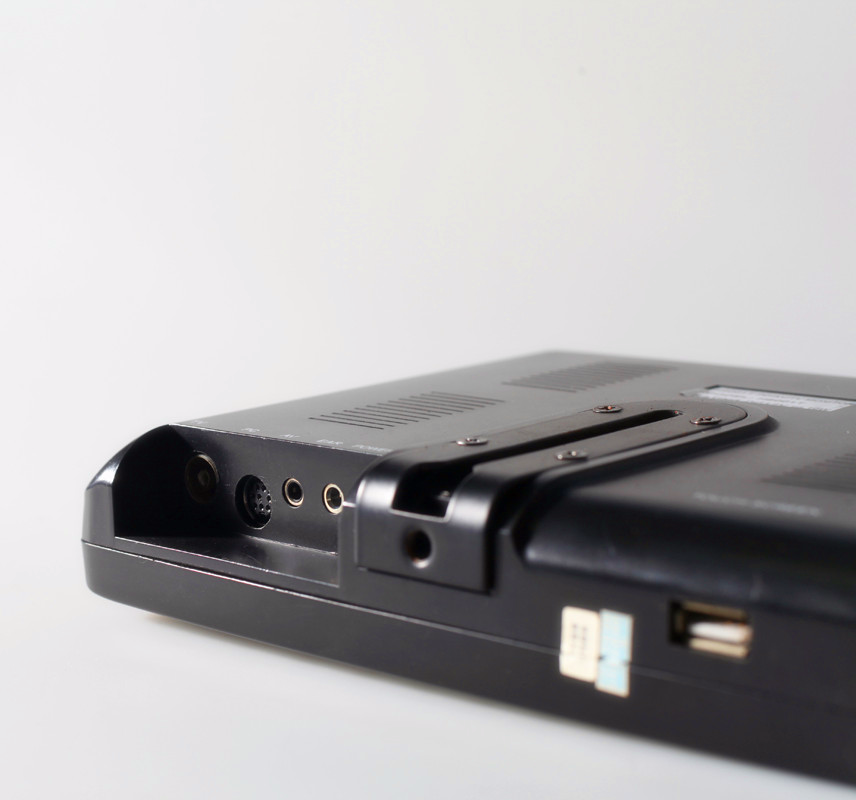

Interface: VGA/AV interface, USB port for driver

Optional: BNC input

Language: Chinese, English, Italian, Spanish, German, French, Japanese, Korean

Certification: FCC, CE, ROHS,CCC

Display Parameters

Aspect Ratio

4:3

Contrast Ratio 500:1 Panel Type LCD
Display Area 162×121.5mm Brightness 250cd/㎡ Backlight CCFL
Resolution 800×600 Viewing Angle 140°/120°


Screen Color

262K

Response Time 25ms

Specification

Installation Stand  Frame color Black Product Dimensions 206×161×37mm
Power input/output 110V to 240V input, 12V output Operating temperature -20~70℃ Humidity temperature 0~90%@40℃ ( non-condensing )
Storage temperature -30~80℃ Box Packing Dimensions

305×215×75mm


Touch Type 4-wire resistive(5-wire optional) Touch Interface USB/RS232


Accessories: Manual, Warranty card, Stand, AV cable, VGA cable, USB cable, Remote controller, Touch pen, Driver disk, Power supply.
