H701 (End of Production) 7 inch 800*480 portable LCD monitor

H701 (End of Production) 7 inch 800*480 portable LCD monitor

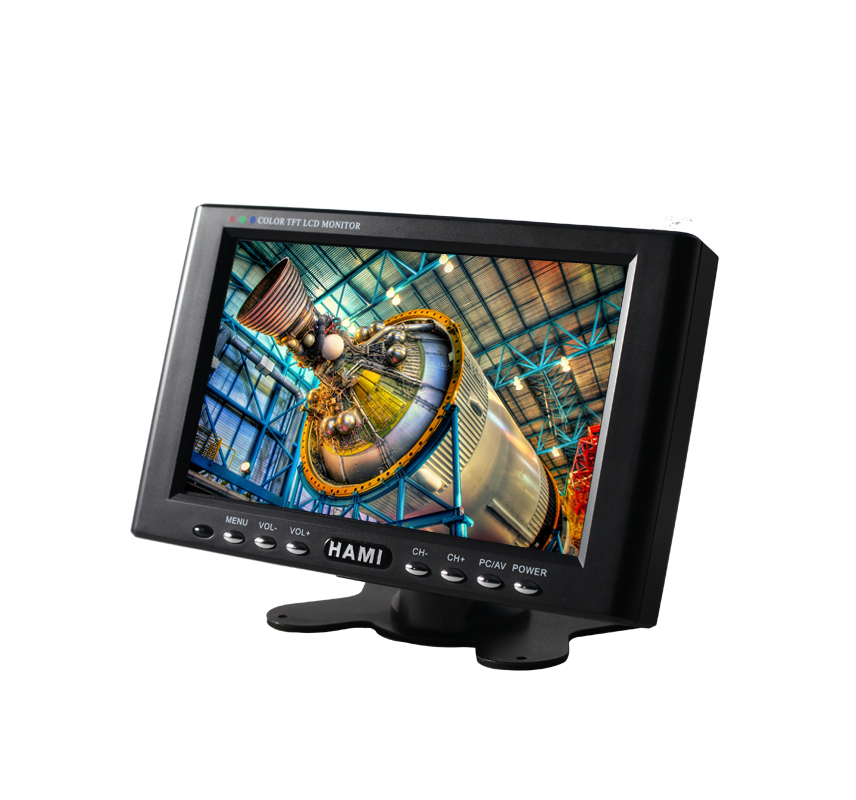

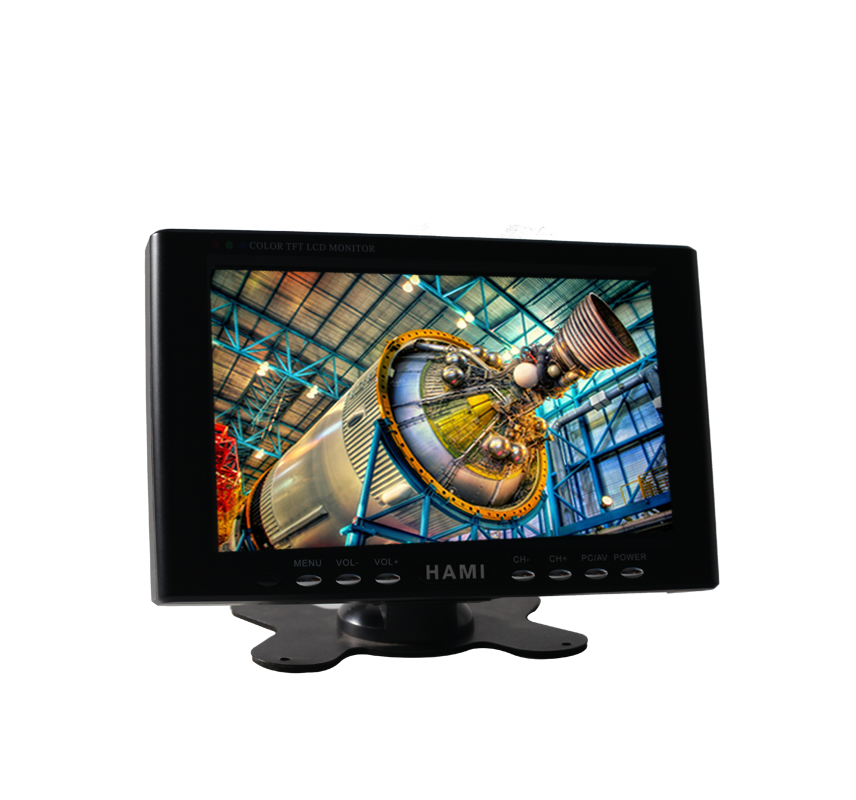

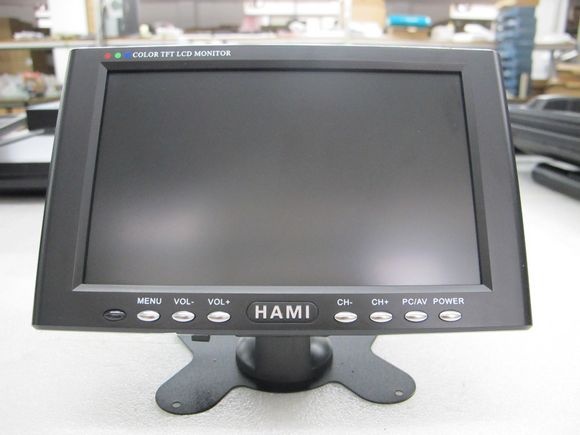

7" TFT Digital LCD Display, lightweight and easy to take, can be used for CCTV security monitoring and industrial machine monitoring.
  • Thumbnail 2
  • Thumbnail 2
  • Thumbnail 2
  • Thumbnail 2
  • Thumbnail 2
  • Thumbnail 2
  • Thumbnail 2
  • Thumbnail 2
  • Introduction
  • Specification
  • Accessories

Model: H701  (End of Production)

7" TFT Digital LCD Display

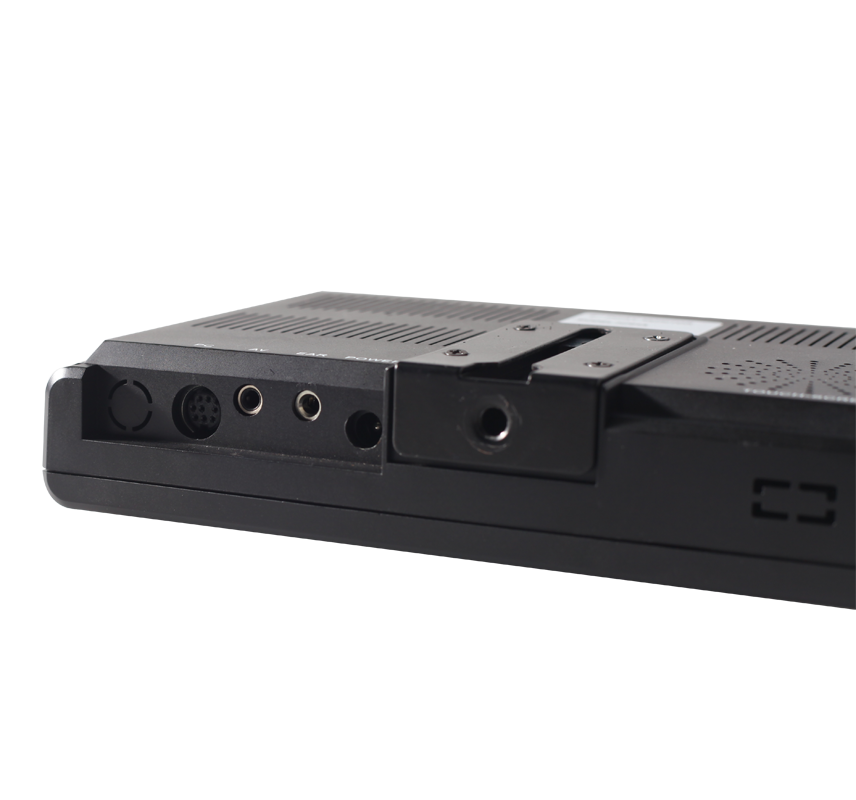

Interface: VGA/AV input; Earphone jack

Optional: BNC

Language: Chinese, English, Italian, Spanish, German, French, Japanese, Korean

Certification: FCC, CE, ROHS, CCC

Display Parameters

Aspect Ratio

15:9

Contrast Ratio 200:1 Panel Type LCD
Display Area 154.08×85.92mm Brightness 400 nits Backlight CCFL
Resolution 800×480 Viewing Angle 130°/105°


Screen Color

262K

Response Time 25ms

Specification

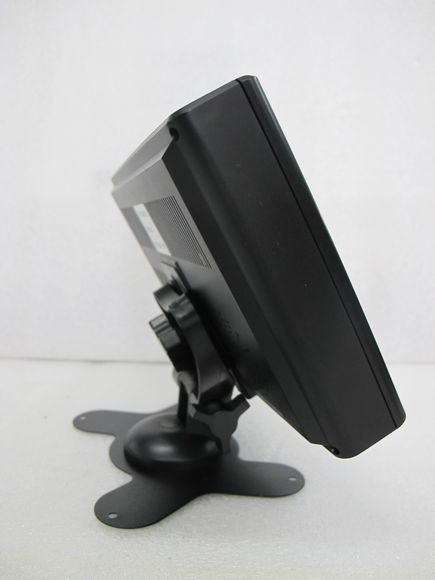

Installation Stand  Frame color Black Product Dimensions 194×121×35mm
Power input/output 110V to 240V input, 12V output Operating temperature -20~70℃ Humidity temperature 0~90%@60℃ ( non-condensing )
Storage temperature -30~80℃ Box Packing Dimensions 300×181×85mm










Accessories: Specification, Warranty card, stand, AV cable, Remote controller, Power adapter
