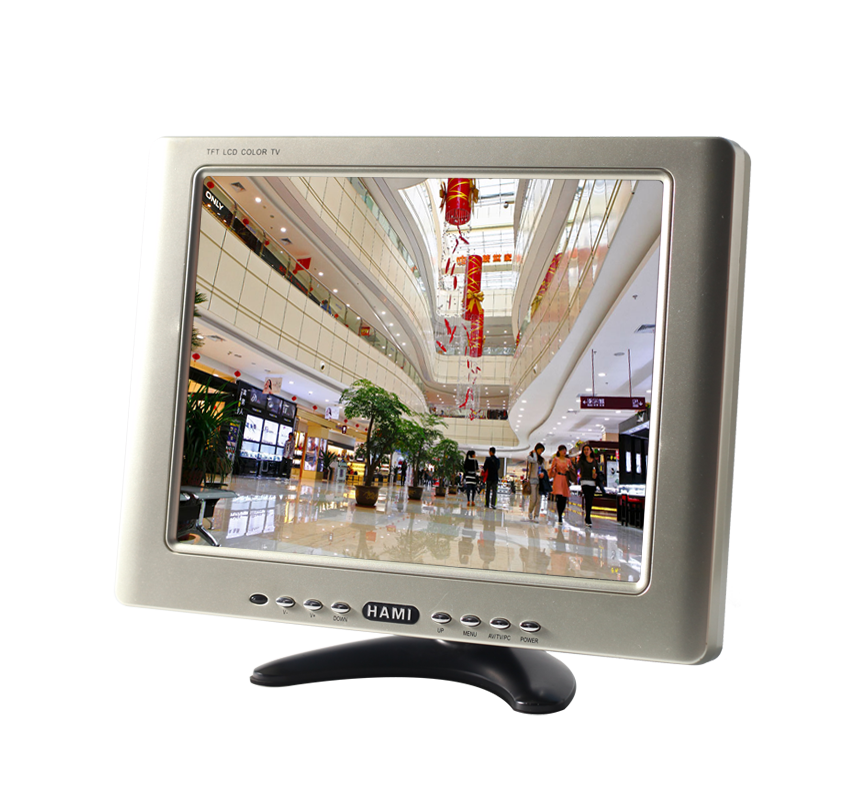

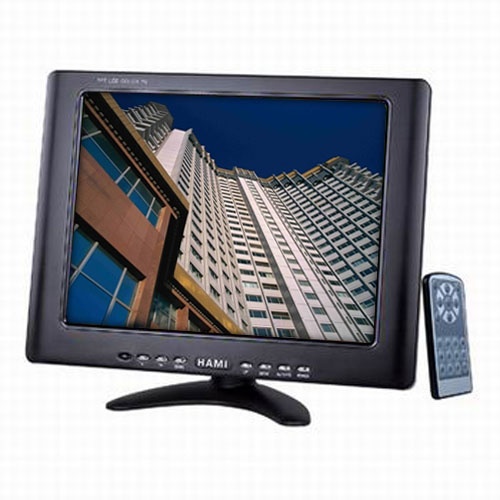

10.4" plastic TFT LCD Display with horizontally and vertically flipped function
Resolution: 640*480 pixel;
Brightness:350 nits;
Contrast ratio: 300:1;
Viewing angles: 140°/110°

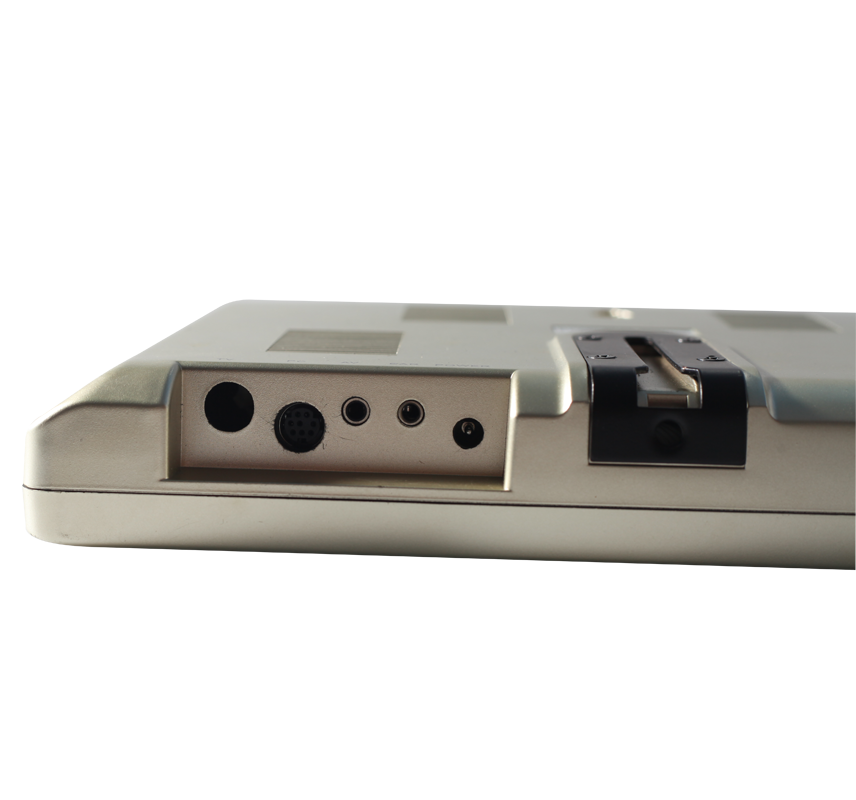

Interface: VGA/AV input RCA output
Optional: BNC/TV
Language: Chinese, English, Italian, Spanish, German, French, Japanese, Korean
Certification: FCC, CE, ROHS, CCC
Display Parameters |
|||||
| Aspect Ratio |
4:3 |
Contrast Ratio | 500:1 | Panel Type | LCD |
| Display Area | 211.2*158.mm | Brightness | 350 cd/squa | Backlight | CCFL |
| Resolution | 640×480 | Viewing Angle | 140°/110° |
|
|
| Screen Color | 262K | Response Time | 50 ms | ||
Specification |
|||||
| Installation | Custom Stand | Frame color | Black | Product Dimensions |
270*200*37 mm |
| Power input/output | 110V to 240V input, 12V output | Operating temperature | -20~70℃ | Humidity temperature | 0~85%@40℃ ( non-condensing ) |
| Storage temperature |
-20~70℃ |
Box Packing Dimensions |
350*280*70mm |
||
Packing
