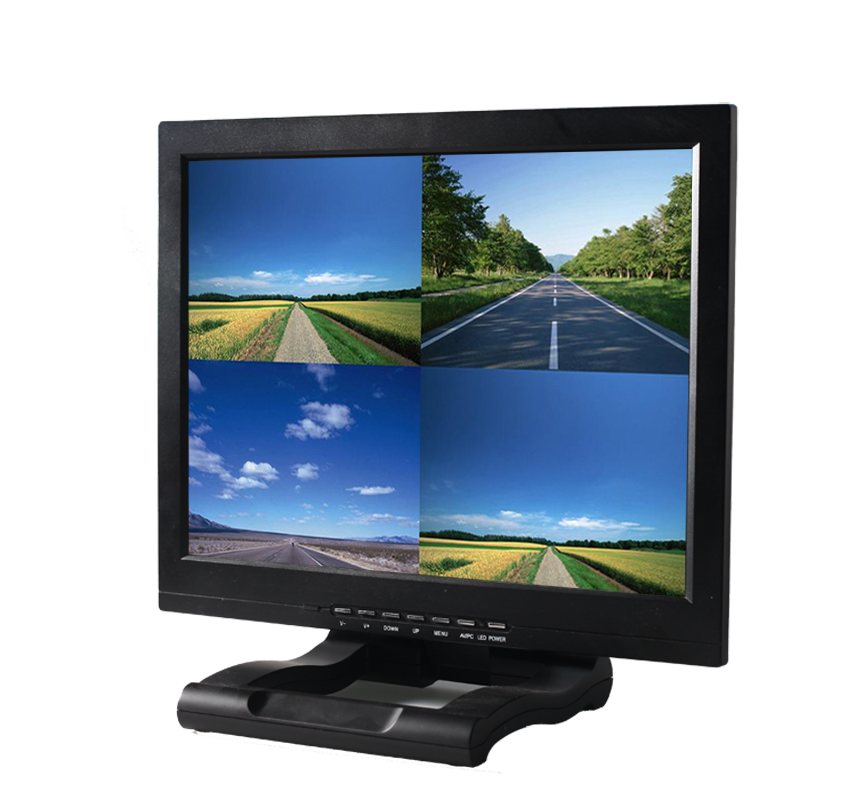

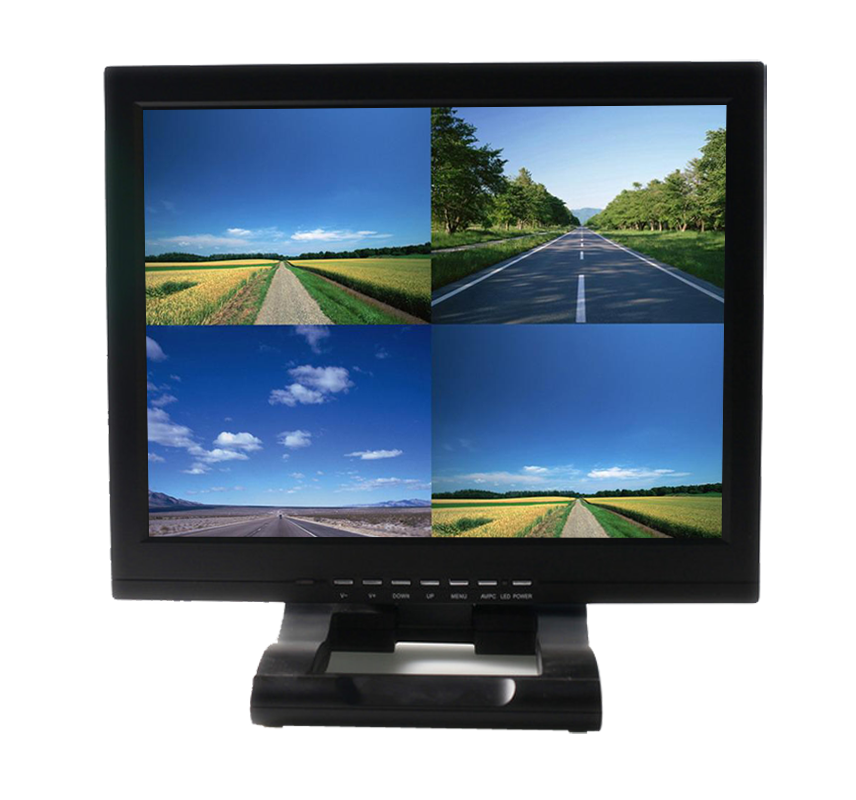

H156A 15-inch LCD screen  monitor display

H156A 15-inch LCD screen monitor display

15" plastic TFT LCD Display, with standard VGA and AV ports, optional BNC and HDMI ports, can be used for CCTV security cameras and industrial machines.
  • Thumbnail 2
  • Thumbnail 2
  • Thumbnail 2
  • Thumbnail 2
  • Introduction
  • Specification
  • Accessories
15" plastic TFT LCD Display, with standard VGA and AV ports, optional BNC and HDMI ports, can be used for CCTV security cameras and industrial machines.

Interface: VGA/AV input RCA output

Optional: BNC/TV

Language: Chinese, English, Italian, Spanish, German, French, Japanese, Korean

Certification: FCC, CE, ROHS,CCC

Display Parameters

Aspect Ratio

4:3

Contrast Ratio 350:1 Panel Type LCD
Display Area 304.1×228.1mm Brightness 260cd/㎡ Backlight CCFL
Resolution 1024×768 Viewing Angle 135°/140°


Screen Color 16.7M Response Time 25ms

Specification

Installation Stand  Frame color Black Product Dimensions

347×285×40mm

Power input/output 110V to 240V input, 12V output Operating temperature 0~50℃ Humidity temperature 0~95%@40℃ ( non-condensing )
Storage temperature

-25~60℃

Box Packing Dimensions

425×128×395mm


Accessories: Specification, Warranty card, stand, AV cable, Remote controller, Power adapter
